Product Description:
Product categories: NL Series: Standard Compression Fitting NutsNS series: Thickened or special specification ferrule nuts
A ferrule nut is a specialized fastener used in hydraulic and pneumatic pipelines. It is used in conjunction with a ferrule tube (ferrule), and tightening the nut generates a clamping force that causes the ferrule to engage with the outer wall of the steel pipe, thereby achieving a high-pressure sealed connection.
Features and advantages
Leakage prevention
The tight fit between the ferrule and the pipeline forms a reliable sealing structure, effectively preventing fluid leakage.
High pressure resistance
Suitable for high-pressure hydraulic systems, with stable sealing performance.
High temperature resistance
The stainless steel material can maintain the connection strength under high temperature conditions.
Easy installation
No welding is required; simply tighten with a wrench to complete the pipe connection.
Technical parameters
|
Model Number | Compatible Pipe Diameter (mm) | Series |
|
|
NL-12Z 12 NL |
NL-14Z 14 NL |
|
NL-16Z 16 NL |
NL-18Z 18 NL |
|
NL-22Z 22 NL |
NL-26Z 26 NL |
|
NL-30Z 30 NL |
NL-36Z 36 NL |
|
NL-45Z 45 NL |
NL-52Z 52 NL |
|
NS-14Z 14 NS |
NS-16Z 16 NS |
|
NS-18Z 18 NS |
NS-20Z 20 NS |
|
NS-22Z 22 NS |
NS-24Z 24 NS |
|
NS-30Z 30 NS |
NS-36Z 36 NS |
|
NS-42Z 42 NS |
NS-52Z 52 NS |
| Note: Non-standard sizes can be customized according to requirements. | |
Material
316 stainless steel
suitable for highly corrosive environments such as seawater and chemical plants.
304 stainless steel
suitable for general corrosive environments and food-grade requirements.
35# steel / 45# steel
carbon steel material, suitable for hydraulic systems with high pressure and high strength requirements, and the surface can be galvanized.
Appearance
Surface treatment
Stainless steel is its natural color, while carbon steel is usually galvanized (blue-white or yellow zinc).
Shape

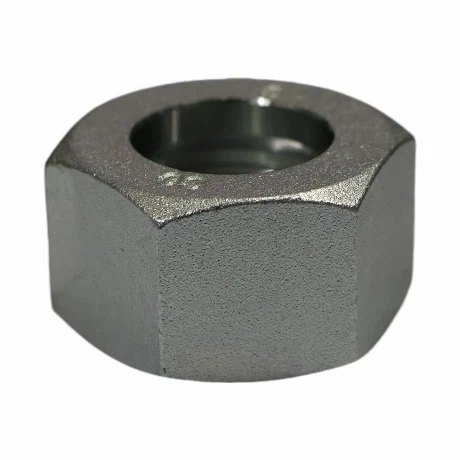

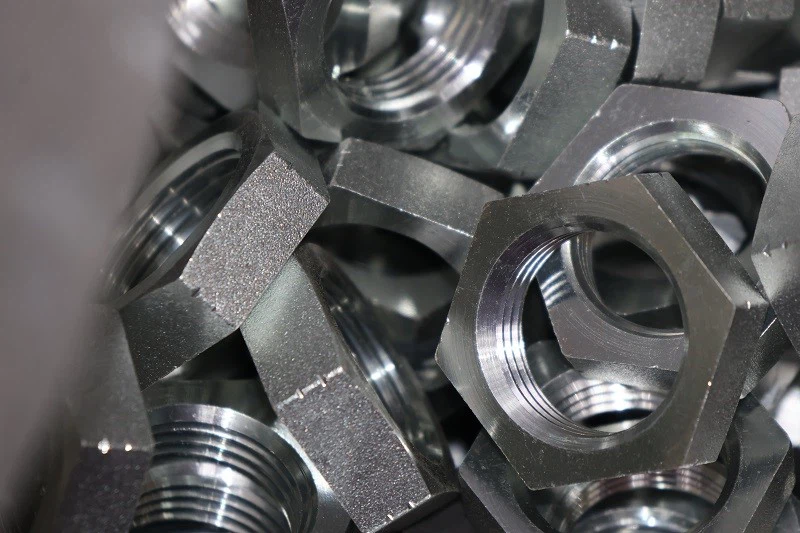

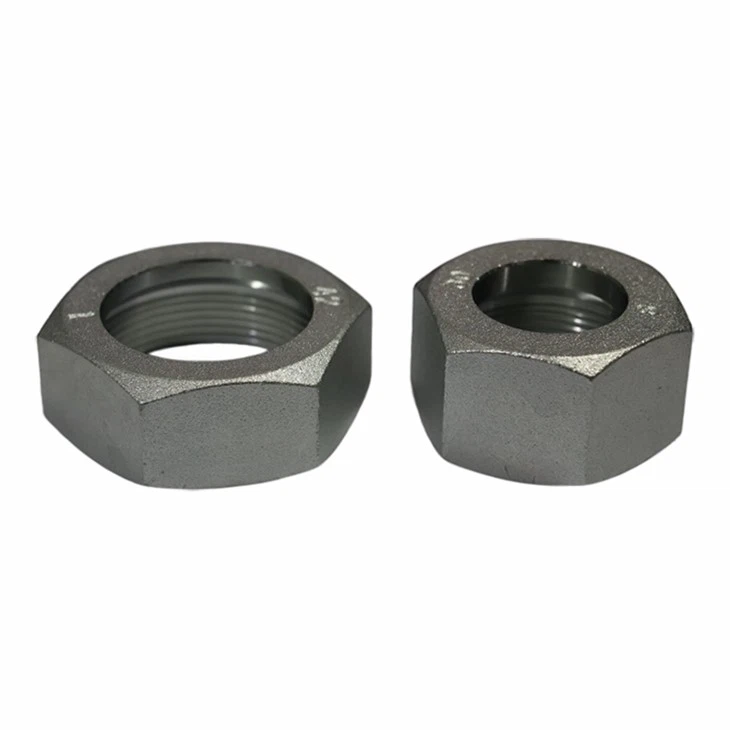

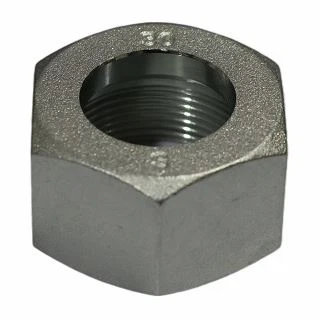

It has a hexagonal shape, making it easy to operate with a wrench, and its surface is smooth and burr-free.
Design
The design features a precision internal conical surface, which ensures even pressure application when mated with the tubing. High thread precision guarantees a smooth tightening process and reliable sealing.
OEM customization
1.
Material
316,304,35#,45#
2.
Size
Non-standard pipe diameters and special thread specifications can be customized.
3.
Surface treatment
Provided upon request
4.
Labeling
Brand, specifications or batch number can be laser-marked.
Quality control

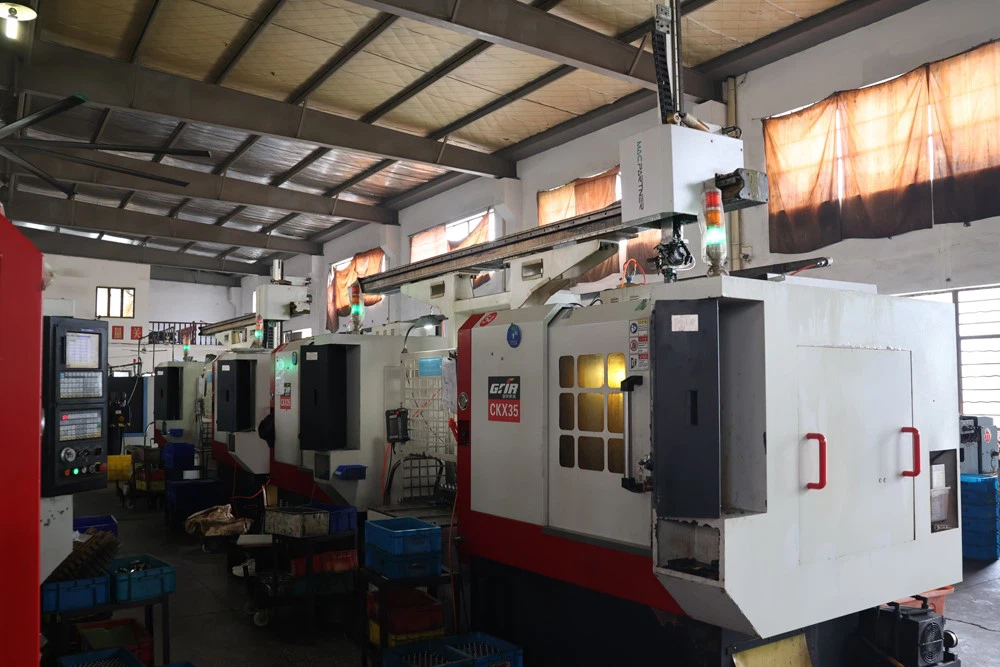

Production process: Raw material inspection → Precision cold heading/machining → Threading → Deburring → Surface treatment → Inspection → Cleaning and packaging.
Key batches for quality control undergo hardness and tensile strength testing.
Quality commitment includes material certification
After-sales service
- Packaging, logistics and transportation Packaging: The inner packaging consists of a rust-proof bag and a cardboard box, while the outer packaging consists of a standard cardboard box or pallet.
- Transportation: We support express delivery, logistics, and sea freight.
- Regularly check for leaks at pipe connections during maintenance. If disassembly and reinstallation are necessary, it is recommended to replace the fittings and nuts with new ones.
- Accessories support is available, including a complete set of hydraulic connectors such as ferrule tubes (ferrules) and fitting bodies.
Application areas
Small-batch sample customization is available, with a lead time of 3-7 days.
Hydraulic systems
Construction machinery, injection molding machines, hydraulic power units.
Pneumatic systems
Automated equipment, pneumatic pipelines.
Shipbuilding and Chemical Industry
Piping Connections, Instrumentation Systems.
High-pressure fluid transportation
oil and natural gas equipment.
Prices are quoted in tiers based on material, specifications, and purchase quantity.
Payment methods include bank transfer to corporate account, prepayment plus final payment before shipment, and monthly settlement for long-term customers.
