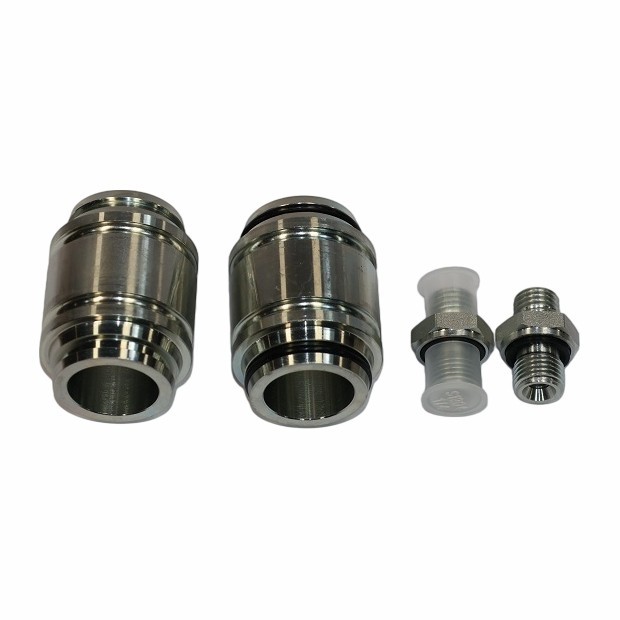

Product Description:
Product categories: 1CM / 1DM Series: Metric Threaded Fittings
1CB / 1DB Series: British Standard Threaded Fittings
1CT / 1DT Series: Tapered Thread Fittings
1C / 1D Series: Standard Connectors
2C / 2D Series: Reducing Fittings
3C/3D Series: Tee Connector
4C / 4D Series: Four-way connector
6C / 6D Series: Hexagonal Connector
9C / 9D Series: Right Angle Bends
AC/AD/BC/BD/CC/CD Series: Adapter Connectors
1CG / 1CH / 1CI series: Compression fittings
Used to connect pipes and equipment of different specifications, types, and materials to achieve a sealed connection in the piping system. Different materials and structures can be selected according to the working conditions to ensure the sealing and fluidity of the pipeline.
Features and advantages
Diverse types
Multiple series are available to suit different piping systems.
01
Reliable sealing
Precision fit to prevent leakage.
02
Easy installation
Threaded connection, no special tools required.
03
Temperature and pressure resistant
Suitable for high temperature and high pressure conditions
04
Material options
Stainless steel for corrosion resistance, carbon steel for high strength.
05
Technical parameters
|
1CM / 1DM Metric external thread connector 1CM-14WD,1CM-14-12WD |
1CB / 1DB British Standard Threaded Fittings 1CB-12-04WD,1CB-14-06WD |
|
1CT / 1DT Tapered threaded joint 1CT-14-04,1CT-16-06 |
1C / 1D Standard connector 1C-14,1C-16,1D-24 |
|
2C / 2D reducing coupling 2C-16-22,2C-22-30 |
3C / 3D T-connector 3C-12,3C-16,3D-24 |
|
4C / 4D four-way connector 4C-14,4C-16,4D-20 |
6C / 6D Hexagonal Connector 6C-14,6C-16,6D-24 |
|
9C / 9D right angle elbow 9C-12,9C-14,1C9-16 |
AC/BC/CC adapter AC-16,BC-14,CC-22 |
|
1CG / 1CH / 1CI Compression Fitting 1CG-14-04OG,1CH-16OG |
|
| Note: Model suffixes such as WD and OG indicate specific structures, which can be confirmed by drawings. | |
Material
316 stainless steel
Highly corrosion resistant, suitable for coastal, chemical, and marine environments.
304 stainless steel
Generally rust-resistant, suitable for ordinary industrial environments.
35# steel / 45# steel
High strength, suitable for high-pressure hydraulic systems
Appearance
Natural metal color (stainless steel) or galvanized (carbon steel), hexagonal design for easy wrench operation.
Design
Precision thread fit, and the sealing surface is specially treated to ensure no leakage after tightening.
OEM customization
1.
Material
Stainless steel, carbon steel, copper, alloy steel, etc.
2.
Dimensions
Non-standard threads, special lengths, irregular shapes
3.
Surface treatment
Galvanizing, blackening, Dacromet coating, Teflon coating, etc.
4.
Logo
Brand logo or specifications/model number can be printed.
Quality control
Production process: Material cutting → Precision machining → Threading → Surface treatment → Full inspection → Packaging
Quality control:100% inspection of threaded go/no-go gauges, and random sampling inspection of pressure tests.
Quality Commitment:Material reports are available.
After-sales service
-
Packaging and logistics transportation:Plastic bags + cardboard boxes for packaging, express/logistics delivery.
-
Accessory support:Fittings, sealing rings, nuts, etc. can be provided.
Other
Samples
Small batch customization is supported; samples take 3-7 days.
Application areas
Hydraulic systems, construction machinery, shipbuilding, petrochemicals, pneumatic equipment
Price
Quoted based on material, specifications, and quantity.
Payment method
Corporate bank transfer; monthly settlement available for long-term clients.
